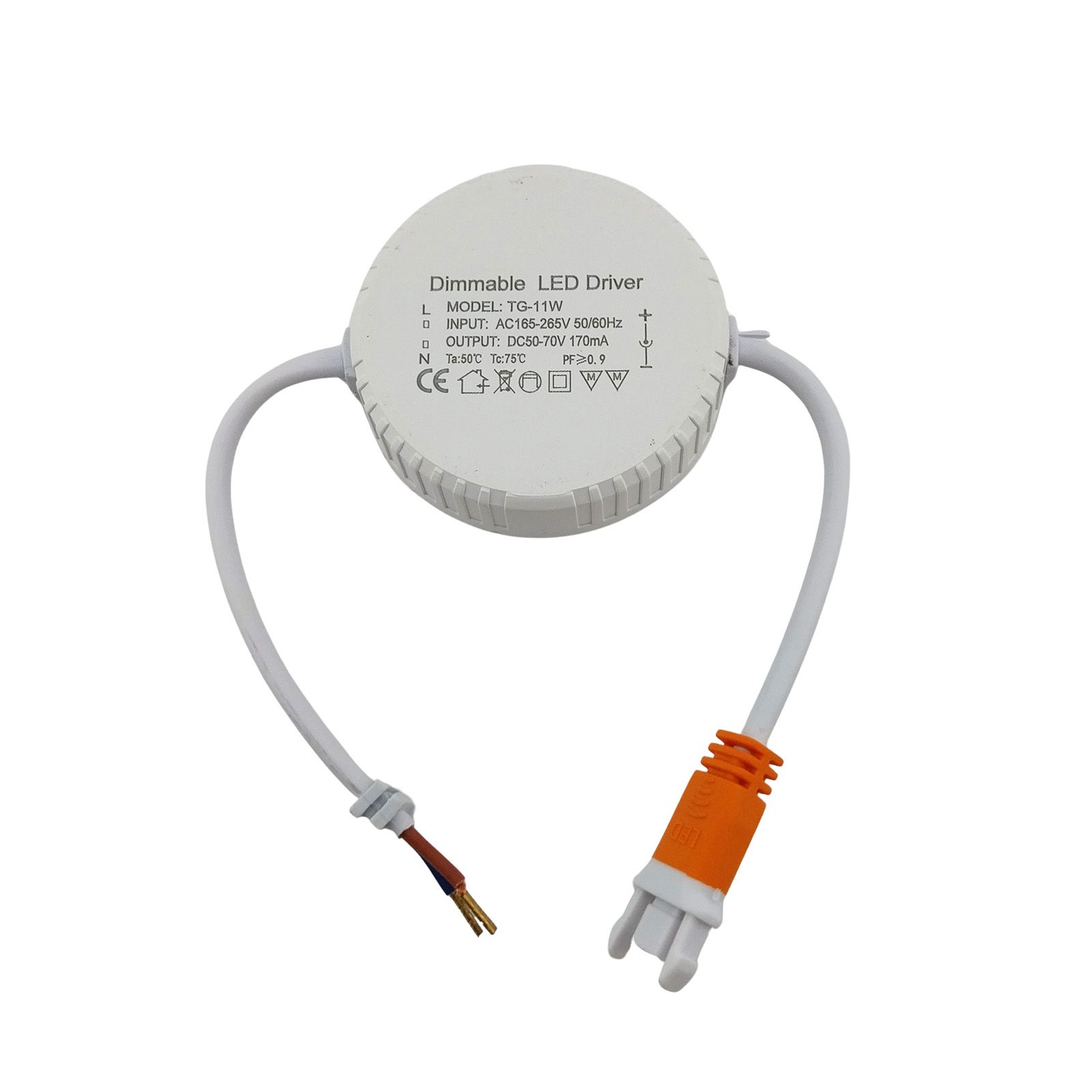

LED driver 11b QIAOPU Model:TG-11W 170mA, dimmable
- dimmable
- 170 mA, 50-70 Volt, 11 Watt

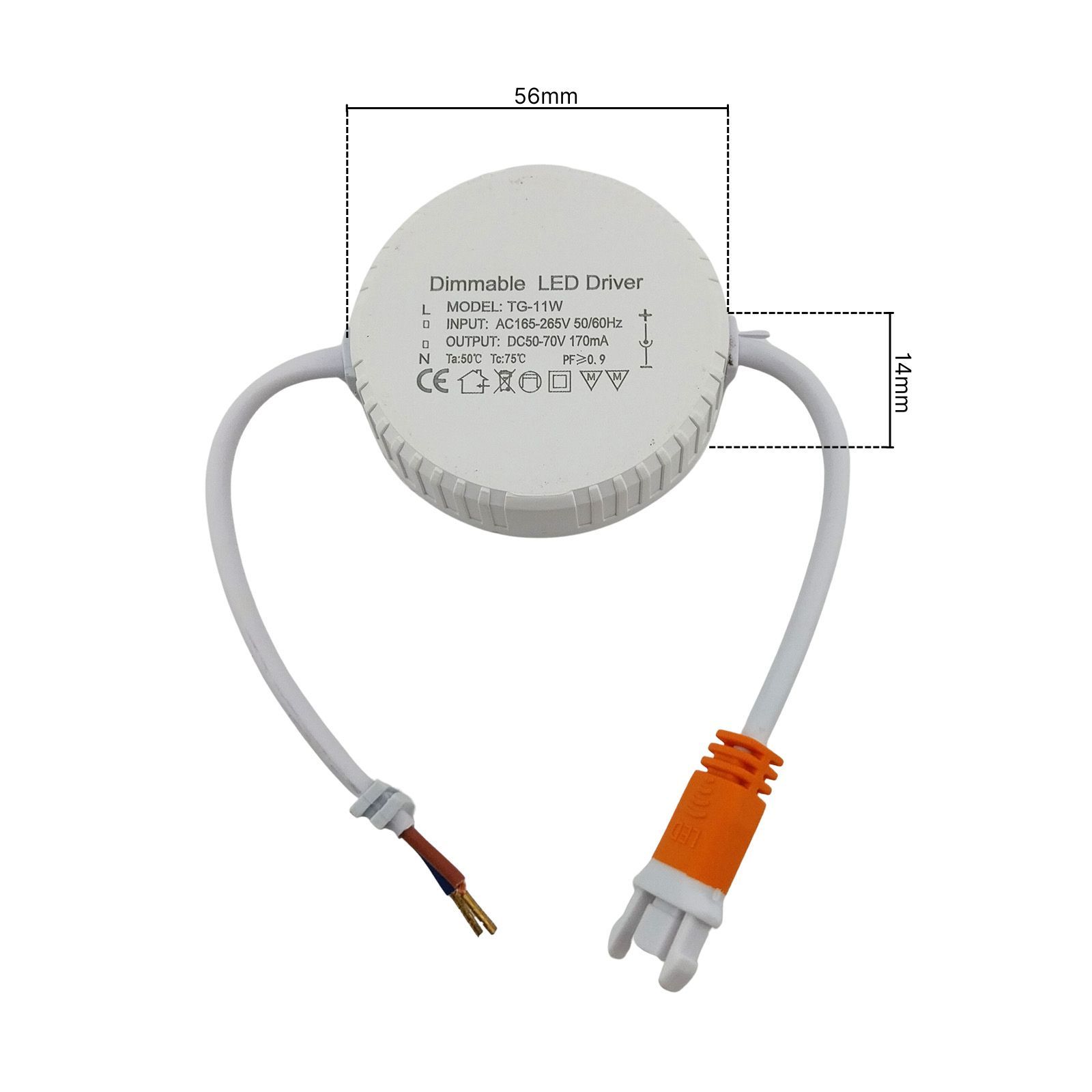

- Ø 56 mm, height 14 mm
- Incl. primary and secondary cable + plug socket
Article number:
Driver 11b QIAOPU Model:TG11W 170mA
Availability:
Now
Product number: 290.0011-02
- Fast europe-wide delivery
- Illuminants and spare parts warranty
- High quality
Downloads
Datenblatt DE - Datasheet EN
(0.26)
Description
LED driver 11b QIAOPU Model:TG-11W 170mA, dimmable
| Height: | 14 mm |
|---|---|
| Diameter: | 56 mm |
| Constant Voltage/Constant Current: | 150-240mA |
| Dimmable: | Yes |
| Dimmable with typ of dimmer: | LED dimmer, Trailing edge dimmer |
| Material: | Plastic |
| Wattage: | 11 W |
| Working Voltage: | 50-70 V |
| Output Current: | 170 mA |
| IP Rating: | 20 |
| Protection Class: | II |
