Recessed spotlight SPOCK, white, 17cm
- Installation depth 4 centimetres
- Material: aluminium
- Colour: white
Article number:
Str 10-488 weiß/EBL (LED24W/1850lm/3000K
Availability:
Now
Product number: 100.0488-01
- Fast europe-wide delivery
- Illuminants and spare parts warranty
- High quality
Downloads
Datenblatt DE - Datasheet EN
(0.28MB)
Allgemeine Montage und Sicherheitshinweise – General Installation and Safety Instructions
(1.76MB)
Description

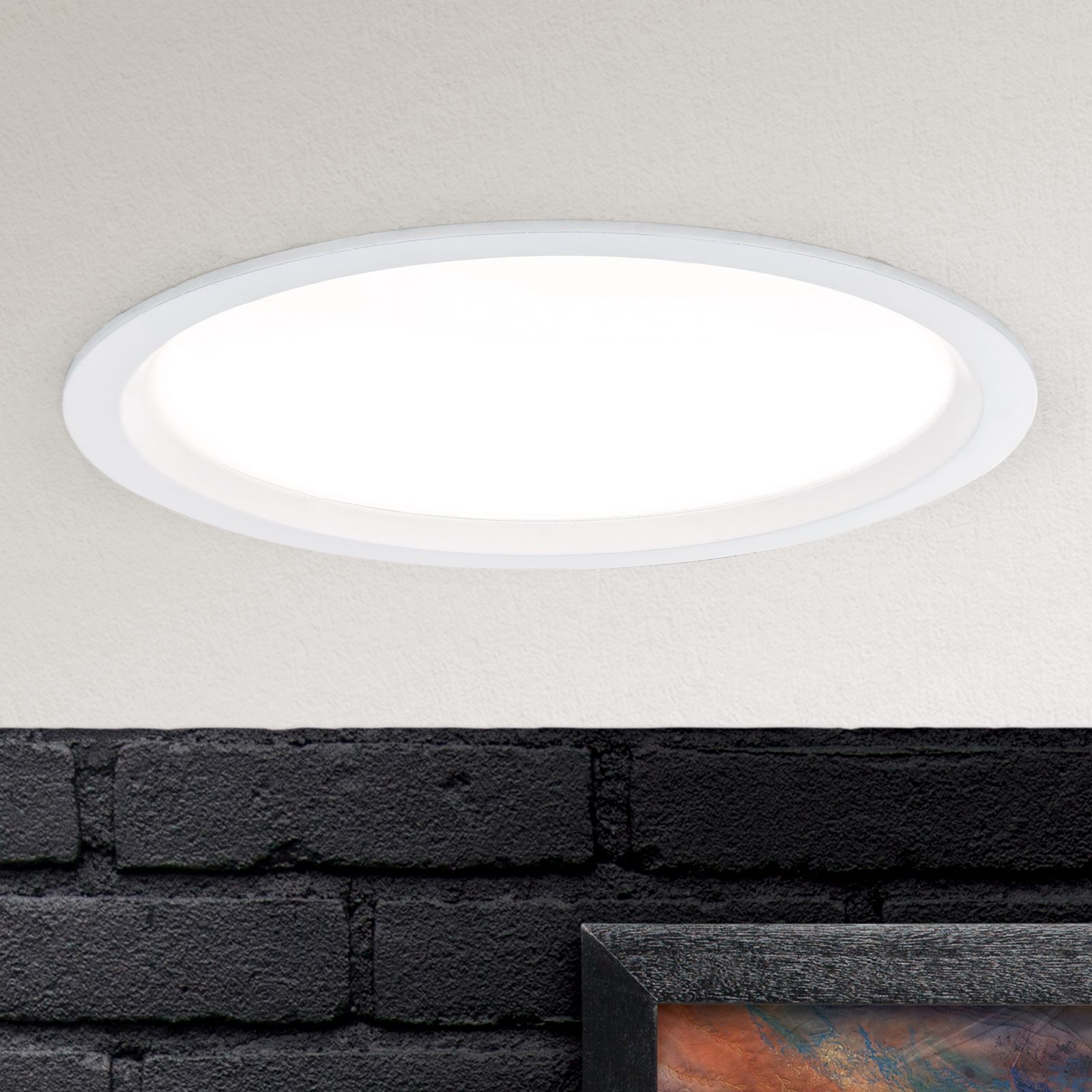

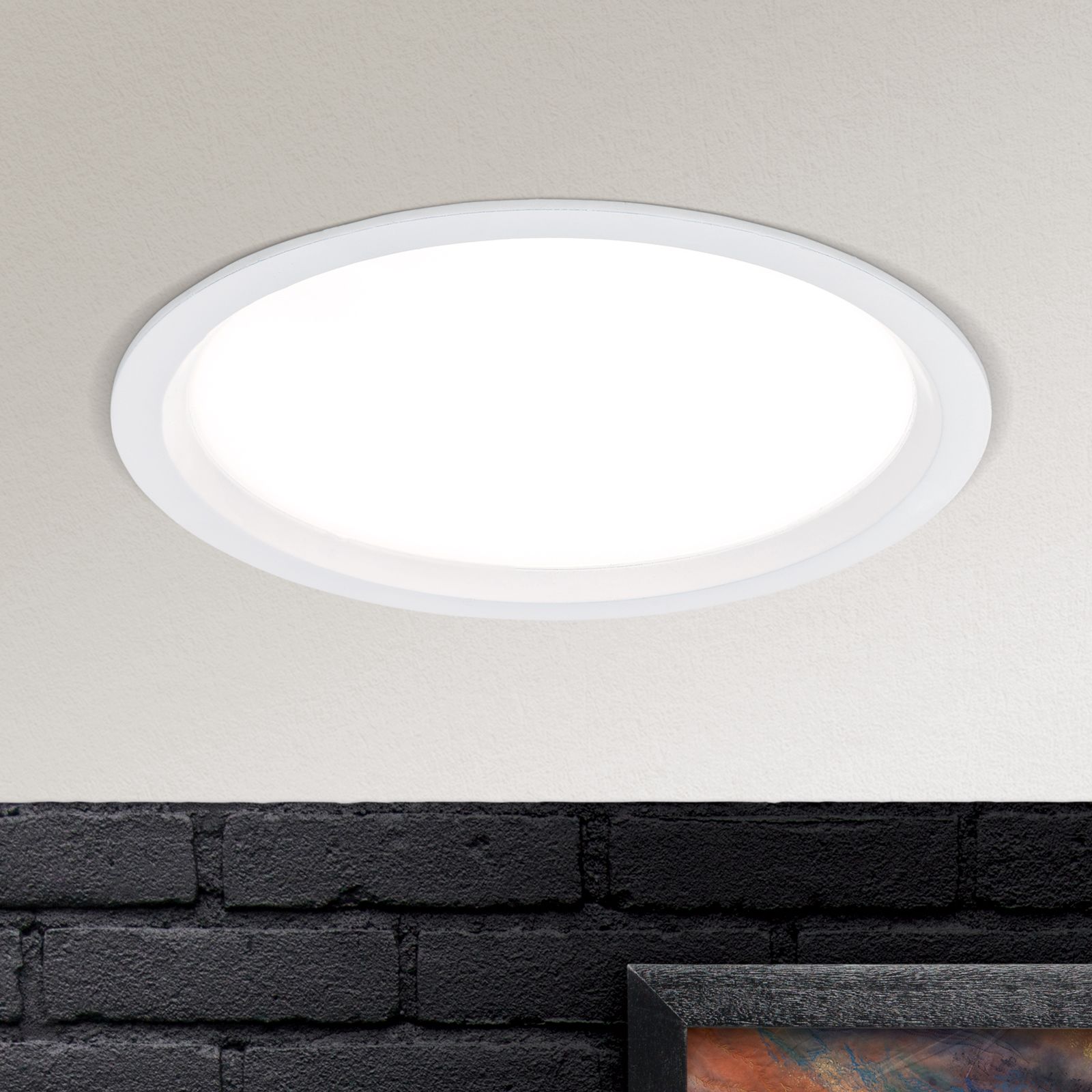

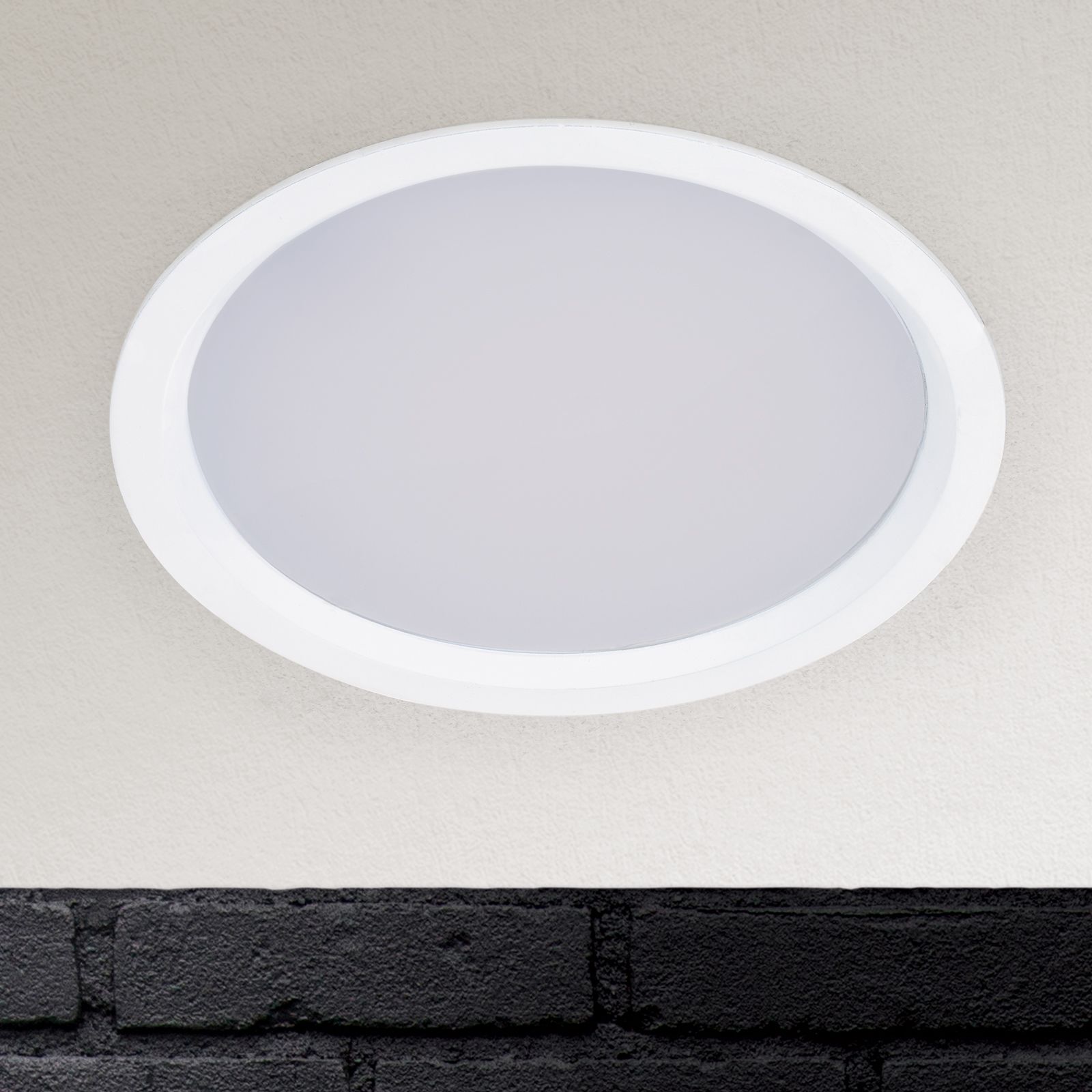

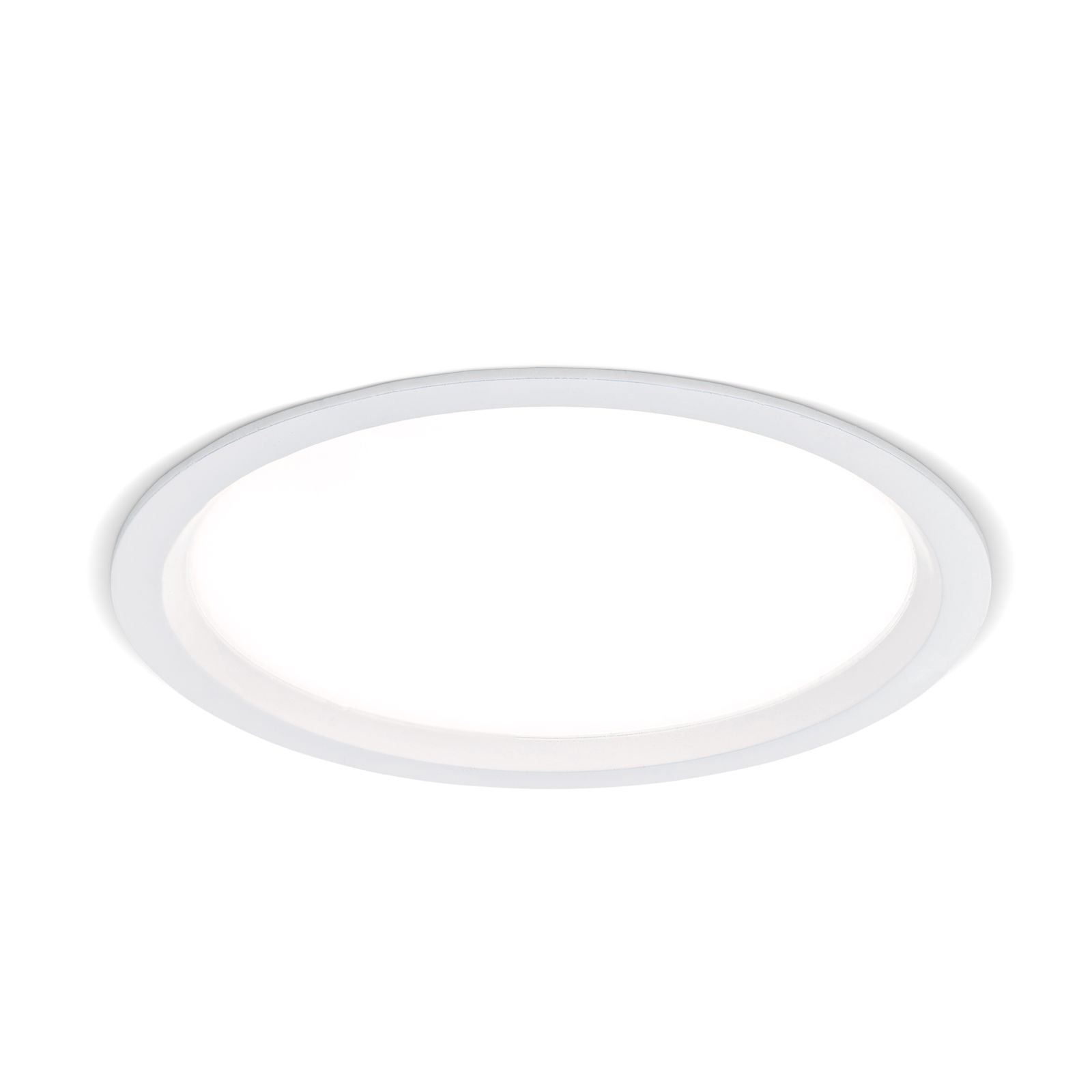

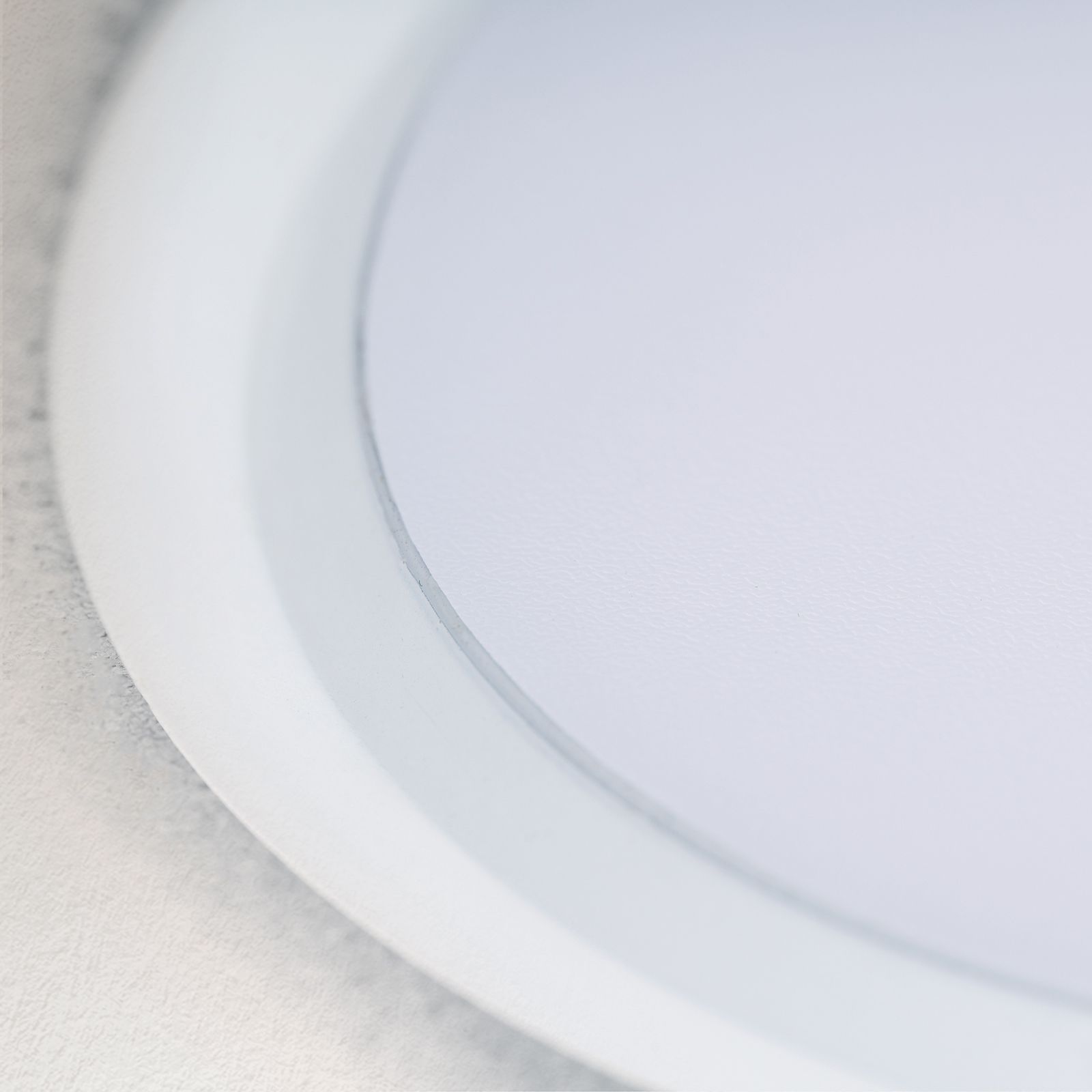

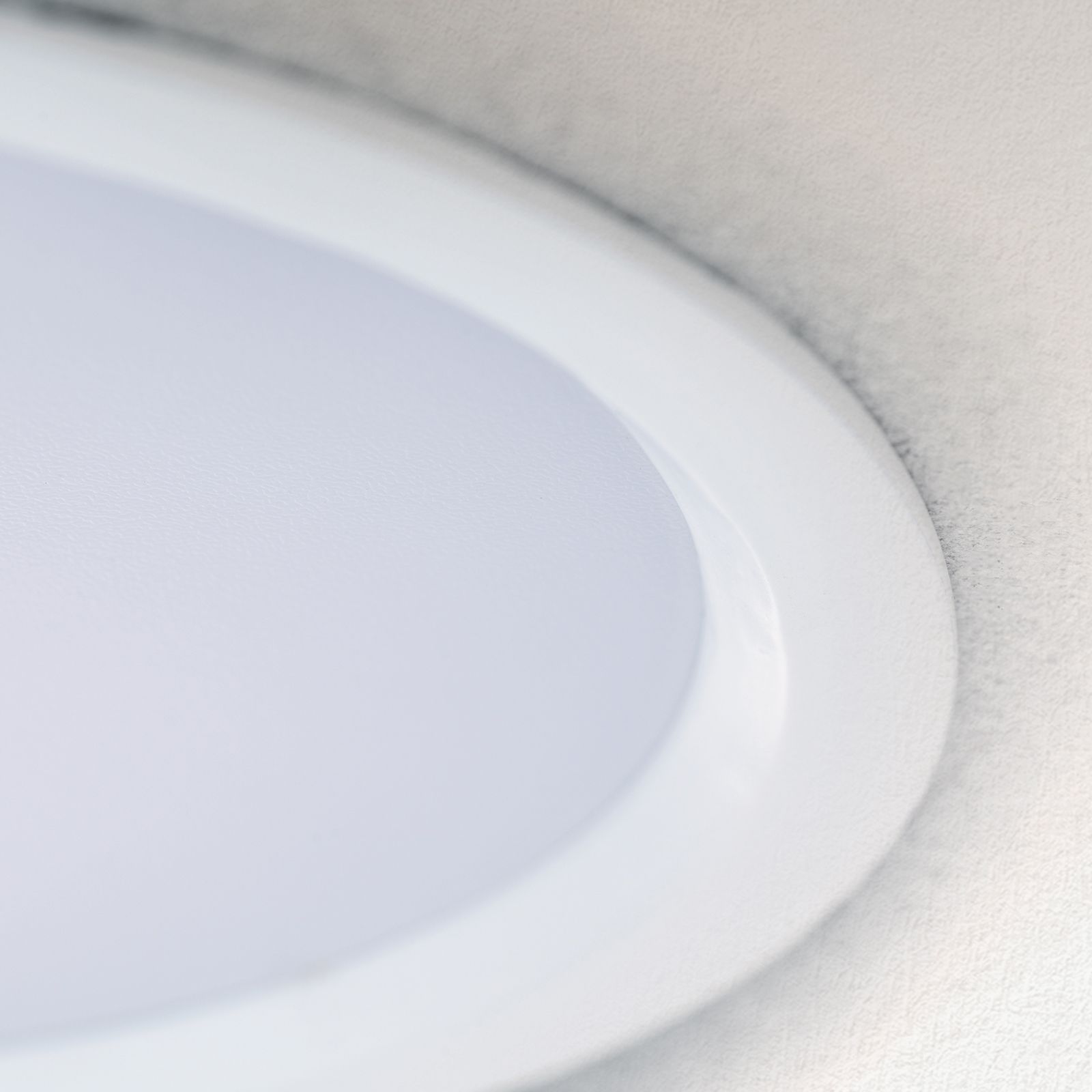

Recessed spotlight SPOCK, white, 17cm
The recessed spotlight of the SPOCK series floats on the ceiling like all galactic objects in perfect roundness. The circular matt glass shade sends out a warm white beam of light to brightly illuminate contemporary living rooms, entrance halls or offices. The frame' cut-out widens outwards, distributing the light generously to the sides. Its recessed depth of only 4 centimetres permits its installation in rooms with suspended ceilings of low height. An LED illuminant supplies 1850 lumens with a consumption of only 24 watts.
To dim the recessed spotlight, a phase down, phase up, or LED dimmer are suitable.
The recessed spotlight SPOCK is also available in a diameter of 9 centimetres.
| Height: | 3,0 cm |
|---|---|
| Diameter: | 17,0 cm |
| Ceiling Cut Out: | 16,0 cm |
| Recessed Height: | 4,0 cm |
| Dimmable: | Yes |
| Dimmable with typ of dimmer: | LED dimmer, Leading edge dimmer, Trailing edge dimmer |
| Light Temperature: | 3000 Kelvin (warm white) |
| Frame Material: | Aluminium |
| Color: | White |
| Luminous Flux: | 1850 lm |
| Built in LED: | Yes |
| Wattage LED: | 24 W |
| Energy Efficiency Class LED: | F |
| LEDs changeable: | Yes, by technician |
| Weighted Energy Consumption: | 24,1 kw/1000h |
| IP Rating: | 20 |
| Protection Class: | II |
| Net Weight: | 0,4 kg |
