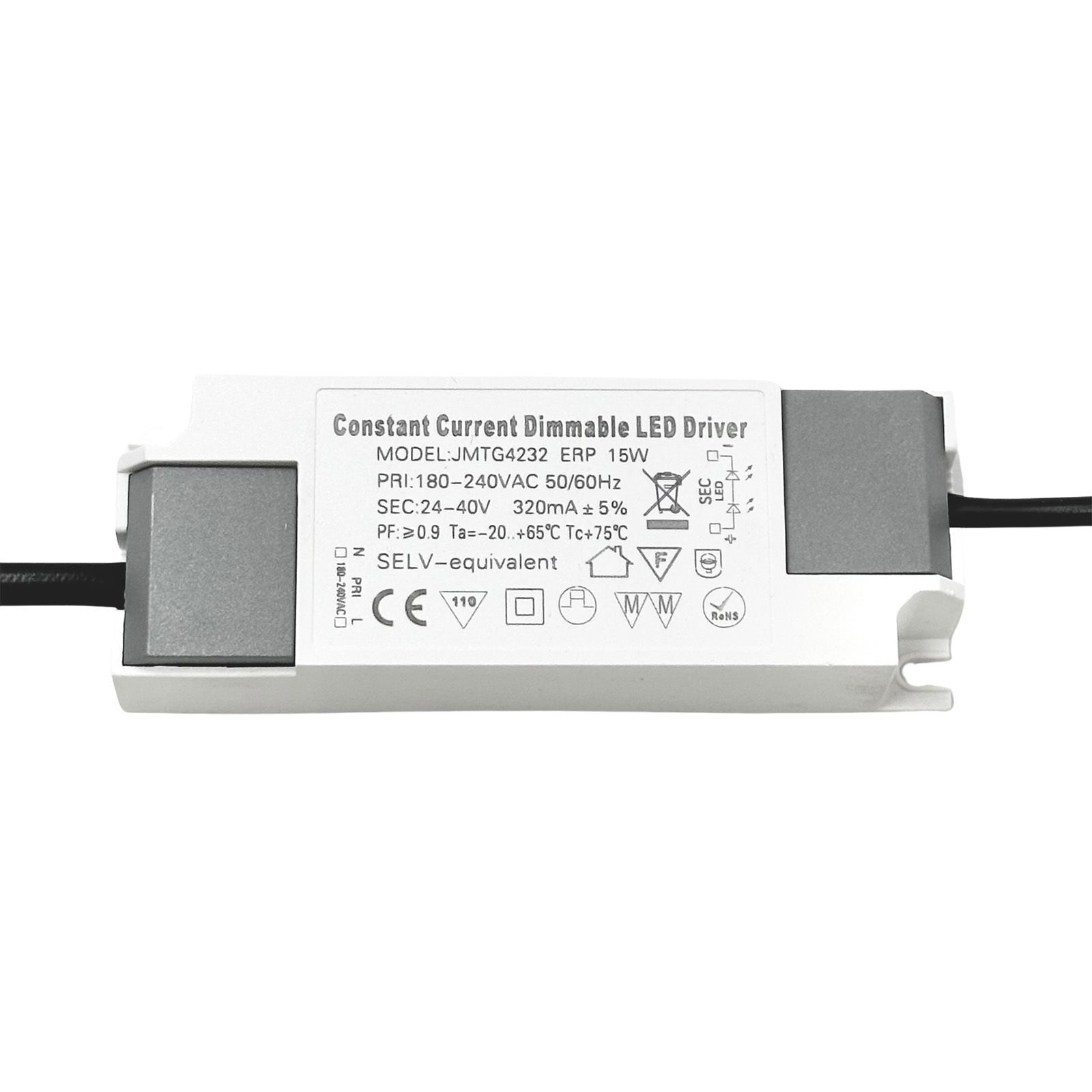

Driver 15n QIAOPU Model:JMTG4232, 15W, 320mA, 24-40V, dimmbar
- dimmbar
- 320 mA, 24-40 Volt, 15 Watt
- Ø 42mm, Höhe 21 mm
Article number:
Driver 15n 15W 320mA 24-40V dimmbar
Availability:
Now
Product number: 290.0015-14
- Fast europe-wide delivery
- Illuminants and spare parts warranty
- High quality
Downloads
Datenblatt DE - Datasheet EN
(0.28MB)
Description
Driver 15n QIAOPU Model:JMTG4232, 15W, 320mA, 24-40V, dimmbar
| Length: | 100 mm |
|---|---|
| Width: | 36 mm |
| Height: | 23 mm |
| Constant Voltage/Constant Current: | 310-340mA |
| Dimmable: | Yes |
| Dimmable with typ of dimmer: | LED dimmer, Trailing edge dimmer |
| Material: | Plastic |
| Wattage: | 15 W |
| Working Voltage: | 24-40 V |
| Output Current: | 320 mA |
| IP Rating: | 20 |
| Protection Class: | II |
| Net Weight: | 0,20 kg |
